M2XSH FE180

SHARE

Product Certificates

You can click to download our certificates.

Areas of Use

Used as fixed installation cable in marine vehicles. Screening layer forms a shield for protection against electromagnetic interferences. Halogen-Free and Flame Retardant construction ensures non-corrosive and highly visible environment during a fire. Also, min.180 minutes of circuit integrity under fire conditions is achieved by its special design.

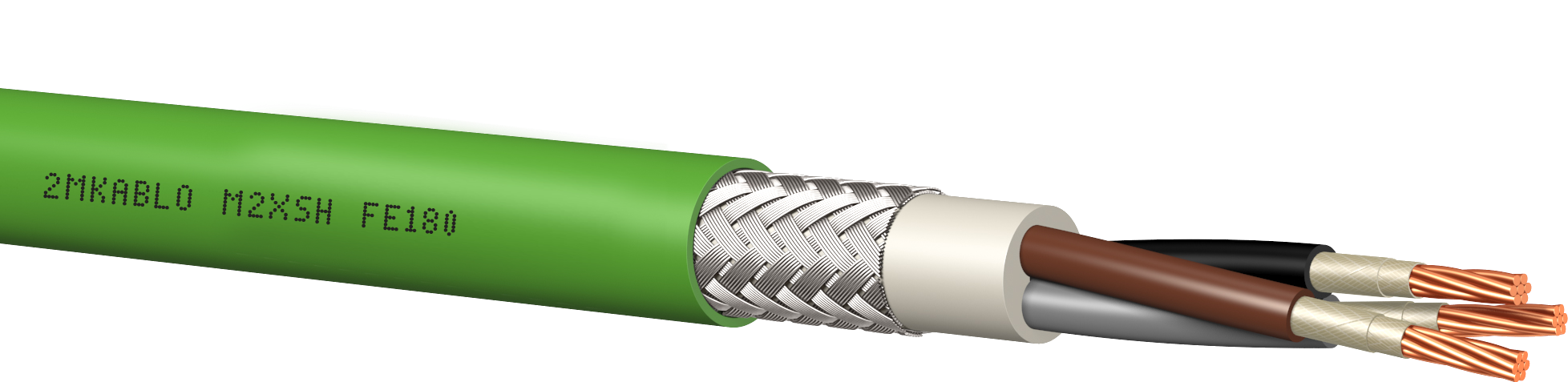

Cable Construction

  • Conductor Stranded Annealed Copper (IEC/EN 60228, Class 2) (tinned copper and/or Class 5 versions are available upon request)
  • Flame Barrier Mica Tape
  • Insulation XLPE (IEC 60092-360)
  • Core Colors According to HD 308 S2 (# of Cores ≥5 => White numbered)
  • Lay-up Cores are stranded in layers
  • Inner Sheath HFFR
  • Overall Screen Galvanised Steel Wire Braid
  • Outer Sheath HFFR (IEC 60092-360 SHF1), RAL 6018 - Green
  • Reference Standards IEC 60092-353

Technical Properties

  • Operating Voltage 0.6/1 (1.2) kV
  • Test Voltage 3.5 kV (a.c.) 8.4 kV (d.c)
  • Conductor Resistance IEC/EN 60228
  • Insulation Resistance >5000 M.Ωxkm
  • Temperature Range -40 °C........+90 °C
  • Flame Retardancy IEC/EN 60332-1-2, IEC/EN 60332-3-22 (CAT A)
  • Fire Resistance IEC 60331-21
  • Smoke Density IEC/EN 61034-1+2
  • Amount of Halogen Acid Gas IEC/EN 60754-1
  • Corrosive Gases Measurement IEC/EN 60754-2
  • Min. Bending Radius (Fixed) 8 x Cable Diameter

Footnote

The name of this product is FireKab BFCI FE180 0.6/1 (1.2) kV according to ABS.
